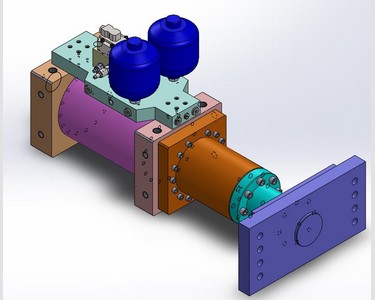

Hydraulic Actuators
Fatigue rated high frequency, low friction servo actuators of capacity ranging from 5KN to 250 KN with Servo valve, load cell, built in position sensor.
- POSITION CONTROL
- VELOCITY CONTROL
- LOAD CONTROL
- VELOCITY: UP TO 1.5 M/SEC.
- FREQUENCY : 0.5 TO 15 Hz
- WORKING PRESSURE:- 210 BAR/*315 BAR/*400 BAR
- MOUTNING:- FRONT FLANGE MOUNTING
- POSITION SENSOR : 200 MM INBUILT TEMPOSONIC +/-10V OUT PUT
- MEDIA : ISO-VG-46/68
- SEALS : NITRILE / VITON
- TESTED AS PER IS-10585-2002
APPLICATIONS :
- FATIGUE TESTING
- ENDURANCE TESTING
- LOAD TESTING
- AEROSPACE STRUCTURAL TESTING
FATIGUE RATED HYDRAULIC SERVO ACTUATORS
| F | R | 0 | 5 | 0 | 3 | 0 | 0 | 2 | 1 | 0 | F | F | R | E | B | 1 | 1 | 0 | 3 | S | V | M | V | ||||||||||
| a | b | c | d | e | f | g | h | i | j | k | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | Servo Actuator Series |
|---|---|
| FR | Fatigue rated |
| b | Force Rating |
|---|---|
| 050 | 5kN |
| 010 | 10kN |
| 015 | 15kN |
| 025 | 25kN |
| 050 | 50kN |
| 075 | 75kN |
| 100 | 100kN |
| 150 | 150kN |
| 250 | 250kN |
| c | Standard Stroke Length |
|---|---|
| Stroke | Ordering Steps |
| 050mm…300mm | 25mm |
| d | Working Pressure |
|---|---|
| 140 | 140bar |
| 210 | 210bar |
| 280 | 280bar |
| e | Mounting |
|---|---|
| FF | Front Flange |
| RF | Rear Flange |
| f | End Connection |
|---|---|
| MTC | Male Thread Connection |
| FTC | Female Thread Connection |
| REF | Rod eye at front |
| REB | Rod eye at both the ends |
| g | Oil Media |
|---|---|
| 1 | Mineral Oil (grade 32 to 68) |
| 2 | MIL-5606H |
| 3 | Phosphate Easter (Skydrol) |
| 4 | Water Glycol |
| h | Servo Valve |
|---|---|
| 101 | 4lpm |
| 102 | 10lpm |
| 103 | 20lpm |
| 104 | 40lpm |
| 105 | 60lpm |
| 106 | 90lpm |
| 107 | 150lpm |
| 108 | 230lpm |
| i | Servo Valve Response |
|---|---|
| S | Standard Resonse |
| H | High Response |
| j | Position Sensor |
|---|---|
| N | Without Position Sensor |
| V | Analog (0-10V) |
| A | Analog (4-20mA) |
| M | Digital Start / Stop |
| S | Digital SSI |
| C | Other Options (see note1) |
| k | Fatigue rated Load Cell |
|---|---|
| N | Without Load Cell |
| MV | mV/V Output |
| 10 | ±10V |
| 20 | 4-20mA |
STANDARD STROKE HYDRAULIC ACTUATORS
| S | S | 0 | 8 | 0 | - | 0 | 3 | 6 | 3 | 0 | 0 | 2 | 1 | 0 | F | F | M | T | C | 1 | 1 | 0 | 3 | S | V | M | V | ||||||||||
| a | b | c | d | e | f | g | h | i | j | k | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | Servo Actuator Series |
|---|---|
| SS | Standard Stroke |
| b | Force Rating | |
|---|---|---|
| Code | Bore Ø (mm) | Rod Ø (mm) |
| 040-018 | 40 | 18 |
| 040-028 | 40 | 28 |
| 050-022 | 50 | 22 |
| 050-028 | 50 | 28 |
| 050-036 | 50 | 36 |
| 063-028 | 63 | 28 |
| 063-036 | 63 | 36 |
| 063-045 | 63 | 45 |
| 080-036 | 80 | 36 |
| 080-045 | 80 | 45 |
| 080-056 | 80 | 56 |
| 100-045 | 100 | 45 |
| 100-056 | 100 | 56 |
| 100-070 | 100 | 70 |
| 125-056 | 125 | 56 |
| 125-070 | 125 | 70 |
| 125-090 | 125 | 90 |
| 160-070 | 160 | 70 |
| 160-090 | 160 | 90 |
| 160-110 | 160 | 110 |
| 200-090 | 200 | 90 |
| 200-110 | 200 | 110 |
| 200-140 | 200 | 140 |
| c | Standard Stroke Length | |
|---|---|---|
| Stroke | Ordering Steps | |
| 050mm…300mm | 25mm |
| d | Working Pressure |
|---|---|
| 210 | 210bar |
| 280 | 280bar |
| 315 | 315bar |
| e | Mounting |
|---|---|
| FF | Front Flange |
| RF | Rear Flange |
| FT | Front Trunnion |
| MT | Mid Trunnion |
| RT | Rear Trunnion |
| f | End Connections |
|---|---|
| MTC | Male Thread Connection |
| FTC | Female Thread Connection |
| REF | Rod eye at front |
| REB | Rod eye at both the ends |
| g | Oil Media |
|---|---|
| 1 | Mineral Oil (grade 32 to 68) |
| 2 | MIL-5606H |
| 3 | Phosphate Easter (Skydrol) |
| 4 | Water Glycol |
| h | Servo Valve |
|---|---|
| 101 | 4lpm |
| 102 | 10lpm |
| 103 | 20lpm |
| 104 | 40lpm |
| 105 | 60lpm |
| i | Servo Valve Response |
|---|---|
| S | Standard Resonse |
| H | High Response |
| j | Position Sensor |
|---|---|
| N | Without Position Sensor |
| V | Analog (0-10V) |
| A | Analog (4-20mA) |
| M | Digital Start / Stop |
| S | Digital SSI |
| C | Other Options (see note1) |
| k | Fatigue rated Load Cell |
|---|---|
| N | Without Load Cell |
| MV | mV/V Output |
| 10 | ±10V |
| 20 | 4-20mA |
LONGER STROKE HYDRAULIC ACTUATORS
| L | S | 0 | 8 | 0 | - | 0 | 3 | 6 | 1 | 4 | 5 | 0 | 2 | 1 | 0 | F | F | M | T | C | 1 | 1 | 0 | 3 | S | V | M | V | ||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | Servo Actuator Series |
|---|---|
| LS | Long Stroke |
| b | Force Rating | |
|---|---|---|
| Code | Bore Ø (mm) | Rod Ø (mm) |
| 050-036 | 50 | 36 |
| 063-036 | 63 | 36 |
| 063-045 | 63 | 45 |
| 080-036 | 80 | 36 |
| 080-045 | 80 | 45 |
| 080-056 | 80 | 56 |
| 100-045 | 100 | 45 |
| 100-056 | 100 | 56 |
| 100-070 | 100 | 70 |
| 125-056 | 125 | 56 |
| 125-070 | 125 | 70 |
| 125-090 | 125 | 90 |
| 160-070 | 160 | 70 |
| 160-090 | 160 | 90 |
| 160-110 | 160 | 110 |
| 200-090 | 200 | 90 |
| 200-110 | 200 | 110 |
| 200-140 | 200 | 140 |
| c | Standard Stroke Length | |
|---|---|---|
| Stroke | Ordering Steps | |
| 0300mm…1500mm | 50mm |
| d | Working Pressure |
|---|---|
| 210 | 210bar |
| 280 | 280bar |
| 315 | 315bar |
| e | Mounting |
|---|---|
| FF | Front Flange |
| RF | Rear Flange |
| FT | Front Trunnion |
| MT | Mid Trunnion |
| RT | Rear Trunnion |
| f | End Connections |
|---|---|
| MTC | Male Thread Connection |
| FTC | Female Thread Connection |
| REF | Rod eye at front |
| REB | Rod eye at both the ends |
| g | Oil Media |
|---|---|
| 1 | Mineral Oil (grade 32 to 68) |
| 2 | MIL-5606H |
| 3 | Phosphate Easter (Skydrol) |
| 4 | Water Glycol |
| h | Servo Valve |
|---|---|
| 101 | 4lpm |
| 102 | 10lpm |
| 103 | 20lpm |
| 104 | 40lpm |
| 105 | 60lpm |
| i | Servo Valve Response |
|---|---|
| S | Standard Resonse |
| H | High Response |
| j | Position Sensor |
|---|---|
| N | Without Position Sensor |
| V | Analog (0-10V) |
| A | Analog (4-20mA) |
| M | Digital Start / Stop |
| S | Digital SSI |
| C | Other Options (see note1) |
| k | Fatigue rated Load Cell |
|---|---|
| N | Without Load Cell |
| MV | mV/V Output |
| 10 | ±10V |
| 20 | 4-20mA |
EXISTING CUSTOMER
- GOODRICH AEROSPACE
- WABTEC TECHNOLOGIES
- LARSEN & TOUBRO
- HINDUSTAN AERONAUTICS
- BHARAT ELECTRONICS LTD
- GODREJ BOYCE
