High Force Actuators

Hydraulic Cylinder Replacement

• Hydraulic cylinders provide long life and high force in a small package size.

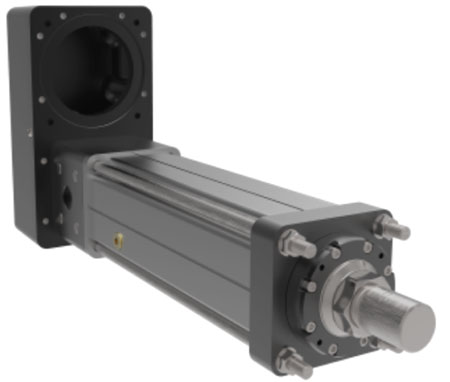

• The FTX Series high force electric actuators were designed specifically to allow migration from traditional hydraulic actuation to electric.

• Based on planetary roller screw technology, the FTX offers life and force density not attainable with more common ball screw based electric actuators.
• With up to 15X the life and 2X the force density, the roller screw based FTX is the right choice when migrating from hydraulic to electric actuation.

Rugged and Reliable

• Hydraulic cylinders are commonly installed in harsh industrial settings.
• Therefore all FTX Series models are environmentally sealed to IP65.
• In addition, its planetary roller screw mechanism withstands significantly higher shock loads than weaker ball screw alternatives.
• Migrate to electric with confidence knowing the FTX Series is every bit as rugged and reliable as the hydraulics they are designed to replace.
