Hydraulic Power Packs
Hydraulic Power Unit

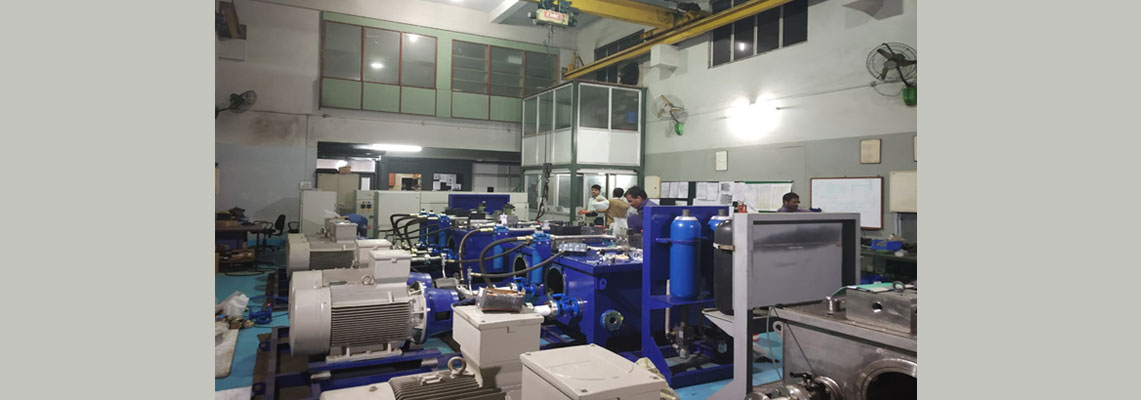

Servocontrols designs and manufactures various types of hydraulic power units for industrial, aerospace, and automotive applications. These power units are designed with flow ratings ranging from 10lpm up to 450lpm and a maximum working pressure of up to 315 bar. Servocontrols have expertise in designing and manufacturing power packs to work with various hydraulic fluids, including mineral oil, MIL-5606H, Skydrol, Water Glycol, etc.
-
Flow Range
- 10lpm to 450 lpm
-
Pressure Range
- up to 315 bar
-
Media
- ISO-VG-46/68 / MIL-PRF-5606 /WATER Glycol(Pegcol)/Phosphate Ester(Skydrol)
-
Pump Options
- Fixed displacement Axial Piston Pump / Variable displacement Axial Piston Pump/Internal Gear pump / Vane pump etc.
-
Motor Options
- Induction Motor / AC Servo Motor / BLDC
-
Seals
- Nitrile / Viton/EPDM
-
Material
- St-42 / SS-204
-
Pipes & Fittings
- Complies to ISO-8434
| MODEL | FLOW(LPM) | PRESSURE(BAR) | POWER(HP) | RESERVOIR CAPACITY(LITRES) |
|---|---|---|---|---|
| SCHPU-1HP-1.5 LPM | 1.5 | 210 | 1 | 50 |
| SCHPU-2HP-3.3 LPM | 3.3 | 210 | 2 | 50 |
| SCHPU-3HP-5 LPM | 5 | 210 | 3 | 75 |
| SCHPU-5HP-8.4 LPM | 8.4 | 210 | 5 | 100 |
| SCHPU-10HP-15.6 LPM | 15.6 | 210 | 10 | 100 |
| SCHPU-20HP-33 LPM | 33 | 210 | 20 | 150 |
| SCHPU-30HP-49 LPM | 49 | 210 | 30 | 250 |
| SCHPU-40HP-67LPM | 67 | 210 | 40 | 300 |
| SCHPU-50HP-90 LPM | 90 | 210 | 50 | 500 |
| SCHPU-100HP-150LPM | 150 | 210 | 100 | 600 |

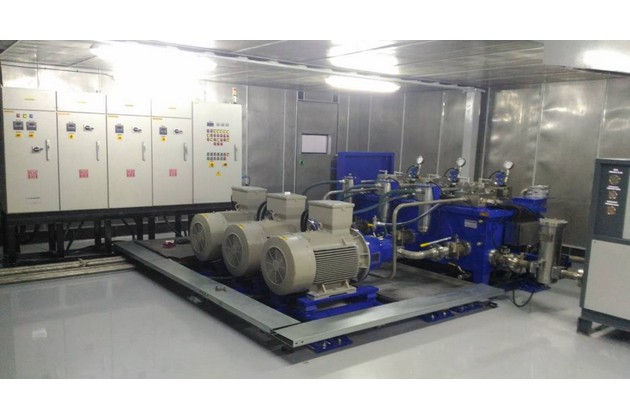

Skydrol - Hydraulic Power Units
Specifications
- Power: 300HP
- Pressure 210 bar (240bar Max.)
- Max Flow: 300lpm
- Fluid: Skydrol
Mineral Oil - Hydraulic Power Units (300HP)
Specifications
- Power: 300HP
- Pressure 210 bar (240bar Max.)
- Max Flow: 300lpm
- Fluid: VG46

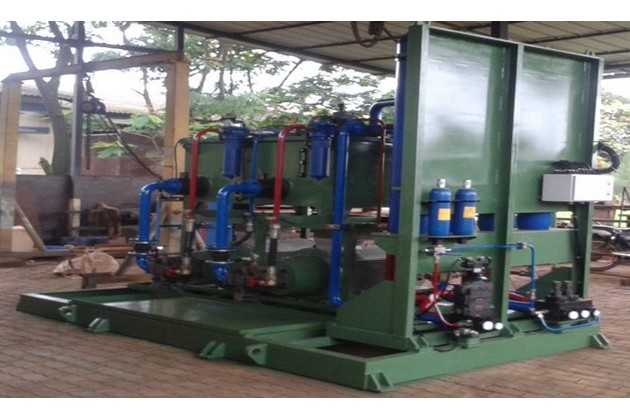

Energy saving Hydraulic Power Units
Specifications
- Power: 200Hp
- Pressure 240 Bar max
- Max Flow: 400lpm
- Fluid: VG68
Hydraulic Power Units
Specifications
- Power: 15HP
- Pressure 105 bar
- Max Flow: 55 lpm
- Fluid: VG46
- Application: 6-DOF Motion Platform
Water Glycol based Hydraulic Power Units
Specifications
- Power: 5HP
- Pressure 315 bar
- Max Flow: 5lpm
- Fluid: Water Glycol
- Application: Hydraulic Component Proof & Burst Testing
Hydraulic Power Units for Marine applications
Specifications
- Power: 40HP
- Pressure 140 bar
- Max Flow: 100lpm
- Tank capacity: 350 ltrs
- Fluid: VG46
Hydraulic Power Units for Automotive test
Specifications
- Power: 60HP
- Pressure 280 bar
- Max Flow: 80lpm
- Application: Automotive Component Testing
- Fluid: VG46
Hydraulic Power Units
Specifications
- Power: 100HP
- Pressure 160 bar
- Max Flow: 200lpm
- Fluid: VG46
- Application: Hydraulic Valve Testing
Hydraulic Power Units
Specifications
- Power: 15 HP
- Pressure 210 bar
- Max Flow: 25 lpm
- Fluid: VG46
Hydraulic Power Units for Mobile Equipments
Specifications
- Power: 3 HP
- Pressure 100 bar
- Max Flow: 15 lpm
- Fluid: VG46
- Mobile Equipment
MIL-5606H (Red oil) based Hydraulic Power Units
Specifications
- Power: 5 HP
- Pressure 315 bar
- Max Flow: 10 lpm
- Fluid: MIL-5606-H
