The RMC100 series brings the benefits of modular, high-performance motion control to a wide range of industrial applications. Communication options—ranging from high-speed fieldbuses to discrete I/O—make these controllers an excellent choice for large and small systems. Transducer types can be combined to control any hydraulic, electric, and pneumatic system. Powerful control modes—including position/pressure control, synchronized moves, gearing, splines, and teach mode—provide optimum control for your motion applications. Refer to other RMC data sheets or the RMCWin online help for more information. Download RMCWin from Delta’s web site at www.deltamotion.com.
RMC100 Motion Controller
Applications
- Presses
- Injection/RIM/blow molding
- Packaging equipment
- Indexing/transfer lines
- Edgers/headrigs/veneer lathes
- Pinch rollers/winders/wrappers
- Casting/forging
- Palletizers/stackers
- Flying cutoff/curve sawing
- Cyclic testing
- Robotics/animatronics
- Pneumatic press rolls
- Tube bending/formin
Features
- Two to eight axes of position or speed control
- Isolated power input, drive outputs, discrete and analog I/O, and communications
- RS-232 port for RMCWin and the RMCCOM ActiveX Control
- Full PID with velocity and acceleration feed-forward
- Motion and pressure profiles can be changed on-the-fly
- 256K FLASH memory for field upgrades and parameter storage
- Trapezoidal, S-curve, and spline profiling
- Teach mode
- Synchronization of 2-8 axes
- Electronic gearing
- Compact DIN-rail mount package
Communication
- PROFIBUS-DP
- Ethernet
- Modbus Plus
- Discrete I/O – 20 inputs, 10 outputs
- Serial (RS-232/422/485)
Position Transducer Interfaces
- Magnetostrictive Transducers – Start/Stop, PWM, and SSI
- Analog Transducers – 16 bit
- Quadrature Encoders
- Absolute encoders and resolvers with Synchronous Serial Interface
Position Transducer Interfaces
- Magnetostrictive Transducers – Start/Stop, PWM, and SSI
- Analog Transducers – 16 bit
- Quadrature Encoders
- Absolute encoders and resolvers with Synchronous Serial Interface
Drive Outputs
- All feedback interfaces are available with analog ±10 Volt outputs
- Quadrature and SSI feedback interfaces are available with stepper output
RMCWin Software
Delta’s powerful RMCWin for Windows 95/98/NT/2000/XP makes setup, tuning, and troubleshooting motion systems easier than ever.

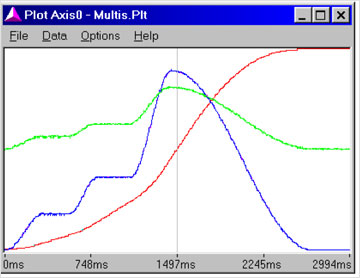

- Provides a graphic display of the latest motion profile, position and drive information
- Includes context-sensitive help and complete user manual online
- Calculates scale, offset, and velocity feed forwards
- Allows user to activate motion profiles and change control parameters from a PC
- Displays parameter and status information for all axes
Event Control
- Repeatable execution of motion commands each loop (1 or 2ms)
- Provides easy, spreadsheet-style programming
- Responds to time delays, status bit conditions, position, or inputs
- Includes 256 event steps
RMCCOM ActiveX Control
Control the RMC from your Visual Basic, Visual C++, Java, and VBA (e.g. Excel) programs.
Pressure/Force Control Option
- Control pressure or differential force at 12- or 16-bit resolution
- Transition between position and pressure/force while in motion
