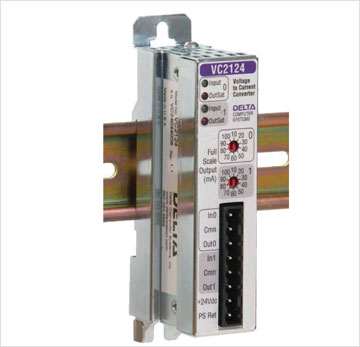

Features
- Two channels of voltage-to-current conversion
- Full scale output current switch-selectable from ±10mA to ±100mA in 10mA steps (each channel set independently)
- Inputs and outputs can be paralleled for output current up to ±200mA
- Dual-color LEDs indicate input polarity and amplitude
- LEDs indicate output saturation (typically caused by loss of connection to the valve or excessively high load resistance)
- Outputs protected against inductive voltage spikes and short circuits
- Compact DIN-rail mount package
- Powered by single 24V supply
- 24V power supply isolated from inputs and outputs
Specifications
| Inputs | |
| Input Voltage Range | ±10V |
| Indicators | 1 dual color LED per channel; Green = positive input, Amber = negative, intensity indicates amplitude. 1 red LED per channel indicates saturation. |
| Input Impedance | 50kΩ |
| Overvoltage protection | ±25V |
| Outputs | |
| Output Current Range | ±10mA to ±100mA, switch-selectable (see the Output Characteristics table for more information). Inputs and outputs can be paralleled for current up to 200 mA. |
| Indicators | 1 red LED per channel for output saturation indication (open circuit or excessive load resistance). |
| Rise Time (square wave input) | 100 µs typical, 10% to 90% (100mA setting, 50Ω resistive load) |
| 3dB frequency | 2.5 kHz typical (±2V in, 100mA setting, 50Ω resistive load) |
| Conversion Accuracy | 0.6% full scale, typical, all ranges |
| Offset | 20 µA typical Max Load Inductance 1H |
| Power Supply Requirements | |
| Voltage | 24Vdc ± 20% |
| Current | 200 mA |
| Isolation | Power supply is isolated from all inputs and outputs. All inputs and outputs share a common. |
| Protection | Power supply inputs are protected against over-voltage, spikes, and reverse voltage. Fuse 24Vdc input with 5A maximum, ULlisted, fast-blow fuse. |
| Mechanical | |

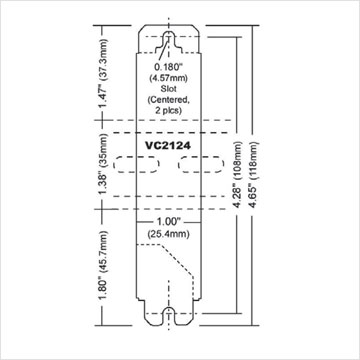

| Dimension | 1.00 x 4.65 x 1.95 in (W x H X D) |
| Weight | 5.5 oz (160 g) |
| Mounting | Mounts directly to DIN rail or panel |
| Connectors | 8-pin unpluggable terminal block |
| Environment | |
| Operating temperature | +32 to +140 °F (0 to +60 °C) |
| Storage temperature | -40 to +185 °F (-40 to +85 °C) |
| Agency Compliance | CE, UL and CUL File# E141684 For use in Type I enclosure. |

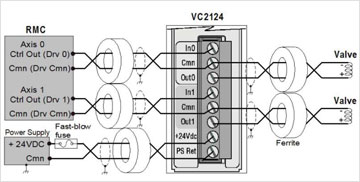

RB12 Wiring
| Terminal Block | ||
|---|---|---|
| Pin | Label | Function |
| 1 | In 0 | ±10V Input |
| 2 | Cmn | Common |
| 3 | Out 0 | Current Out |
| 4 | In 1 | ±10V Input |
| 5 | Cmn | Common |
| 6 | Out 1 | Current Out |
| 7 | 24Vdc | 24Vdc Power Supply |
| 8 | PS Ret | Power Supply Return |
Note: Pins 2 and 5 are electrically the same.
