Electro-proportional Valves
- Designed for reliability in mobile machinery applications and exposed environmental conditions
- Excellent linearity and low hysteresis
- Hardened precision spools and cages for long life
- Industry common cavity sizes enable interchangeability with non-proportional valves
- Drop-in style, sealed, proportional clutch actuation, and piloting valves
- Series E water/weather-resistant coils with integral connectors rated up to IP69K
- Patented high strength solenoid tube for all 3-position HSP valves
Proportional flow control, poppet type, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-20 | 207 (3000) | 22 (6) |
| SP08-20A | 207 (3000) | 30 (8) |
| HSP10-20 | 350 (5075) | 53 (14) |
| SP10-20 | 250 (3625) | 68 (18) |
| SP12-20 | 250 (3625) | 100 (26) |
| HSP16-20 | 207 (3000) | 265 (70) |
| SP16-20 | 250 (3625) | 265 (70) |
Proportional flow control, poppet type, normally closed, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-22 | 207 (3000) | 30 (8) |
Proportional directional control, 3-position, 4-way, closed center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-47C | 240 (3500) | 11 (3) |
| *HSP10-47C | 350 (5075) | 33 (9) |
| SP10-47C | 248 (3600) | 22 (6) |
| *HSP12-47C | 350 (5075) | 56 (15) |
| SP08-47CL | 240 (3500) | 8 (2) |
Proportional flow control, poppet type, normally open
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-21 | 207 (3000) | 23 (6) |
| HSP10-21 | 350 (5075) | 53 (14) |
| SP10-21 | 250 (3625) | 61 (16) |
| SP12-21 | 250 (3625) | 200 (53) |
| HSP16-21 | 350 (5075) | 95 (25) |
| SP16-21 | 250 (3625) | 265 (70) |
Proportional flow control, spool type, normally closed, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-24 | 207 (3000) | 11 (3) |
| SP10-24 | 207 (3000) | 27 (7) |
Proportional flow control, spool type, normally open, bidirectional
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-25 | 207 (3000) | 15 (4) |
| SP10-25 | 207 (3000) | 19 (5) |
Proportional directional control, 3-position, 4-way, motor center
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-47D | 240 (3500) | 11 (3) |
| *HSP10-47D | 350 (5075) | 35 (9) |
| SP10-47D | 207 (3000) | 22 (6) |
| *HSP12-47D | 350 (5075) | 56 (15) |
| SP08-47DL | 240 (3500) | 8 (2) |

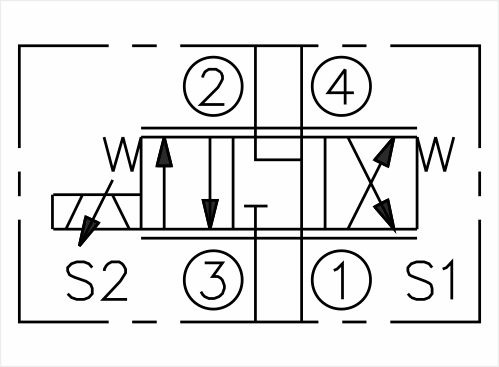

Proportional flow control, 2-position, 4-way
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP08-46R | 250 (3625) | 11 (3) |
| SP10-46R | 250 (3625) | 23 (6) |
Proportional directional valve, 3-position, 5-way, closed center, load sense port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP10-57C | 250 (3625) | 23 (6) |
Proportional directional valve, 3-position, 5-way, motor center, load sense port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP10-57D | 250 (3625) | 23 (6) |
| SP08-57D | 240 (3500) | 10 (3) |
Proportional flow control, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PV16-23 | 240 (3500) | 170 (45) |
Proportional flow control, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PV70-33 | 207 (3000) | 30 (8) |
| PV72-33 | 240 (3500) | 75 (20) |
Proportional directional valve, 3-position, 5-way, closed center, brake release port
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP10-58C | 250 (3625) | 23 (6) |
Proportional flow control, normally closed, priority bypass
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PV08-30 | 240 (3500) | 23 (6) |
| *HPV12-30 | 350 (5075) | 76 (20) |
| *HPV16-30 | 350 (5075) | 151 (40) |
| PV70-30 | 240 (3500) | 30 (8) |
| PV72-30 | 240 (3500) | 114 (30) |
| PV76-30A | 240 (3500) | 95 (25) |
Proportional flow control, normally open
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PV70-35 | 207 (3000) | 30 (8) |
Proportional directional valve, 3-position, 5-way, motor center, load sense port, brake release
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| SP10-58D | 250 (3625) | 23 (6) |
| SP08-58D | 240 (3500) | 15 (4) |
Proportional flow regulator, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PFR70-33x-E | 207 (3000) | 30 (8) |
| PFR72-33x-L | 207 (3000) | 60 (16) |

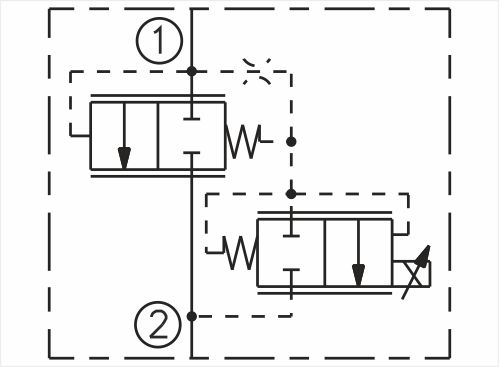

Pressure-compensated proportional flow control valve, normally closed
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| *HPV12-20 | 350 (5075) | 68 (18) |
| PV72-20 | 240 (3500) | 64 (17) |
Proportional flow control, 2-stage, normally closed, priority bypass
US Pat. 6,966,329| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PV42-M30 | 240 (3500) | 190 (50) |
Pressure-compensated proportional flow control valve, normally open
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| *HPV12-21 | 350 (5075) | 61 (16) |
| PV72-21 | 240 (3500) | 56 (15) |
Proportional flow control, normally open, priority bypass
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PV08-31 | 240 (3500) | 23 (6) |
| *HPV12-31 | 350 (5075) | 76 (20) |
| HPV16-31 | 350 (5075) | 151 (40) |
| PV70-31 | 240 (3500) | 50 (13) |
| PV72-31 | 240 (3500) | 114 (30) |
| PV76-31A | 240 (3500) | 80 (21) |
Proportional flow regulator, normally closed, priority bypass
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| PFR70-33x-F | 207 (3000) | 30 (8) |
| PFR70-33x-J | 207 (3000) | 30 (8) |
| PFR72-33x-J | 207 (3000) | 60 (16) |
Pressure compensated proportional flow control, normally closed
US Pat. 6,167,906| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| ZL70-30 | 240 (3500) | 20 (5) |
| ZL72-30 | 240 (3500) | 50 (13) |
Proportional pressure control valve, pilot operated, relief, increasing pressure with current
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS10-26 | 240 (3500) | 95 (25) |
| TS12-26 | 240 (3500) | 189 (50) |

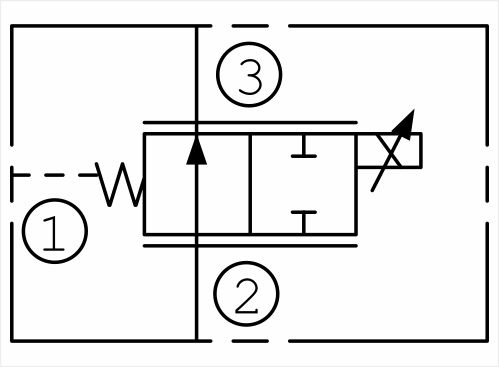

Proportional pressure reducing/relieving valve
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EHPR08-33 | 207 (3000) | 4 (1) |
Pressure compensated proportional flow control, normally open
US Pat. 6,167,906| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| ZL70-31 | 240 (3500) | 19 (5) |
| ZL72-31 | 240 (3500) | 50 (13) |
Proportional pressure control valve, pilot operated, relief, decreasing pressure with current
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS08-27 | 240 (3500) | 25 (6) |
| TS10-27 | 275 (4000) | 76 (20) |
| TS12-27 | 240 (3500) | 186 (49) |
Proportional pressure reducing/relieving valve, drop-in
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EHPR98-T33 | 240 (3500) | 4 (1) |
Pressure compensated proportional flow control, priority bypass
US Pat. 6,116,263| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| ZL70-36 | 240 (3500) | 19 (5) |
| ZL72-36 | 240 (3500) | 45 (12) |
Proportional pressure reducing/relieving valve, pilot operated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS98-30 | 24 (350) | 30 (8) |
Proportional pressure reducing/relieving valve, drop-in
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| EHPR98-T35 | 103 (1500) | 6 (2) |
| EHPR98-T38 | 240 (3500) | 19 (5) |
| EHPR98-T38B | 240 (3500) | 19 (5) |
Proportional pressure control valve, relief, increasing pressure with current
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS08-20 | 35 (500) | 4 (1) |
| TS38-20 | 248 (3600) | 11 (3) |
| TS58-20 | 345 (5000) | 8 (2) |
Proportional pressure reducing/relieving valve, pilot operated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS90-31 | 207 (3000) | 38 (10) |
Proportional pressure control valve, relief, decreasing pressure with current
US Pat. 6,267,350| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS38-21 | 240 (3500) | 1.1 (0.3) |
| TS58-21F | 393 (5700) | 1.9 (0.5) |
Proportional pressure reducing/relieving valve, pilot operated, drop-in
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS98-T34 | 30 (435) | 30 (8) |
Proportional pressure reducing/relieving valve, pilot operated
| Model | Pressure bar (psi) | Flow lpm (gpm) |
|---|---|---|
| TS10-36 | 240 (3500) | 57 (15) |
| TS12-36 | 275 (4000) | 189 (50) |
